Calibrate with multiple OD channels

Hi Cameron,

I hope you’re well. We’d like to measure OD using 2 photodiode channels to monitor OD at different levels. We have plugged the PD cable into the X2 pocket instead of the REF pocket to get a 45 degree angle relative to the IR as you suggested here.

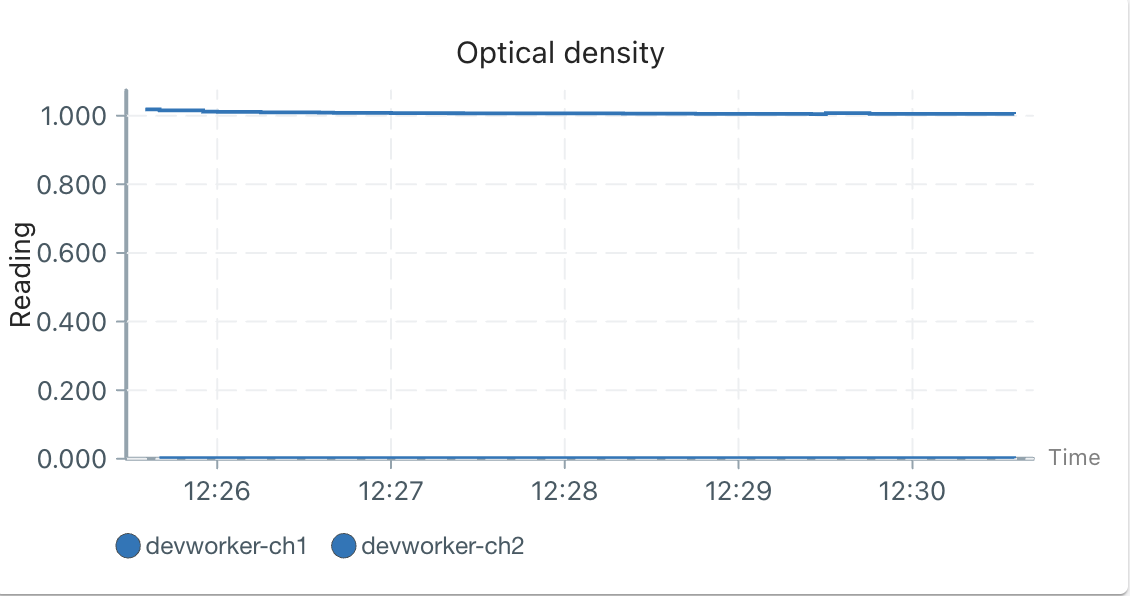

We are getting two readings from the two channels (success!) but would like to calibrate the od readings. When I try running either pio calibrations run --device od --protocol-name standards or pio calibrations run --device od --protocol-name single_vial, I get this error: “REF required for OD calibration. Set an input to REF in [od_config.photodiode_channel] in your config.” As you note here, it’s not required. I was thinking I could calibrate each channel separately by connecting the photodiode to the REF and 90 pockets to calibrate 90, and the REF and 45 to calibrate 45 but then we’d have two calibrations and I believe only one can be active at a time. Do you have any suggestions? We’re keen to get the strains growing to high OD to test what happens at higher growths so limiting growth wouldn’t be an ideal solution.

Many thanks in advance for your help,

Vicky

Hi @vickylouise,

I was thinking I could calibrate each channel separately by connecting the photodiode to the REF and 90 pockets to calibrate 90, and the REF and 45 to calibrate 45 but then we’d have two calibrations and I believe only one can be active at a time. Do you have any suggestions?

Unfortunately this won’t work, as the calibration will be scaled by the REF, but in practice, it won’t be, so you won’t be “mapping” to the correct spot.

As a simple first step to fix the above, I suggest copy-pasting the protocol you want (singe-vial vs standards, I use single-vial below), making the following edits, and adding it as a plugin in ~/.pioreactor/plugins.

Changes to make:

  1. Change:

    if "REF" not in config["od_config.photodiode_channel_reverse"]:
       echo(
           red(
               "REF required for OD calibration. Set an input to REF in [od_config.photodiode_channel] in your config."
           )
       )
       raise click.Abort()
       # technically it's not required? we just need a specific PD channel to calibrate from.

    ref_channel = config["od_config.photodiode_channel_reverse"]["REF"]
    pd_channel = cast(pt.PdChannel, "1" if ref_channel == "2" else "2")



    to

    pd_channel = prompt(
        green("Provide the PD channel you are calibrating"),
        type=click.Choice(["1", "2"])
    )

  2. At the bottom of that file, add the following:

    from pioreactor.calibrations import CalibrationProtocol

    class MultiplePDCalibration(CalibrationProtocol):
       target_device = "od"
       protocol_name = "single_vial_multiple_pd"

       def run(self):
           return run_od_calibration()



Now, I think, when you run pio calibrations run --device od --protocol-name single_vial_multiple_pd, your code will execute and and app will let you specify the PD you want to use for the calibration.


That allows you to create calibrations per PD. If everything works, you should see them in the folder ~/.pioreactor/storage/calibrations/od/ with different pd_channel fields.

Next, we need to modify od_reading to allow for two calibrations. You’re correct that only a single active calibration is possible, but we can get around this. The calibration logic in od_reading is setup to have a calibration per PD, see self.models in this code.

Anyways, a new plugin Python file the following would work (TODO: fill in the TODOs in the file below):

# -*- coding: utf-8 -*-
from __future__ import annotations
from pioreactor.background_jobs.od_reading import *
from pioreactor.calibrations import load_calibration


def start_od_reading(
    od_angle_channel1: pt.PdAngleOrREF
    | None = cast(pt.PdAngleOrREF, config.get("od_config.photodiode_channel", "1", fallback=None)),
    od_angle_channel2: pt.PdAngleOrREF
    | None = cast(pt.PdAngleOrREF, config.get("od_config.photodiode_channel", "2", fallback=None)),
    interval: float | None = 1 / config.getfloat("od_reading.config", "samples_per_second", fallback=0.2),
    fake_data: bool = False,
    unit: str | None = None,
    experiment: str | None = None,
):

    if interval is not None and interval <= 0:
        raise ValueError("interval must be positive.")

    if od_angle_channel2 is None and od_angle_channel1 is None:
        raise ValueError("Atleast one of od_angle_channel2 or od_angle_channel1 should be populated")

    unit = unit or whoami.get_unit_name()
    experiment = experiment or whoami.get_assigned_experiment_name(unit)

    ir_led_reference_channel = find_ir_led_reference(od_angle_channel1, od_angle_channel2)
    channel_angle_map = create_channel_angle_map(od_angle_channel1, od_angle_channel2)
    channels = list(channel_angle_map.keys())

    # use IR LED reference to normalize?
    if ir_led_reference_channel is not None:
        ir_led_reference_tracker = PhotodiodeIrLedReferenceTrackerStaticInit(
            ir_led_reference_channel,
        )
        channels.append(ir_led_reference_channel)
    else:
        ir_led_reference_tracker = NullIrLedReferenceTracker()

    calibration_pd1 = load_calibration("od", ) # TODO: PROVIDE NAMES OF CALIBRATIONS
    calibration_pd2 = load_calibration("od", ) # TODO: PROVIDE NAMES OF CALIBRATIONS

    calibration_transformer = CachedCalibrationTransformer()
    calibration_transformer.hydate_models(calibration_pd1)
    calibration_transformer.hydate_models(calibration_pd2)

    if interval is not None:
        penalizer = config.getfloat("od_reading.config", "smoothing_penalizer", fallback=700.0) / interval
    else:
        penalizer = 0.0

    return ODReader(
        channel_angle_map,
        interval=interval,
        unit=unit,
        experiment=experiment,
        adc_reader=ADCReader(
            channels=channels, fake_data=fake_data, dynamic_gain=not fake_data, penalizer=penalizer
        ),
        ir_led_reference_tracker=ir_led_reference_tracker,
        calibration_transformer=calibration_transformer,
    )


@click.command(name="od_reading")
@click.option(
    "--od-angle-channel1",
    default=config.get("od_config.photodiode_channel", "1", fallback=None),
    type=click.STRING,
    show_default=True,
    help="specify the angle(s) between the IR LED(s) and the PD in channel 1, separated by commas. Don't specify if channel is empty.",
)
@click.option(
    "--od-angle-channel2",
    default=config.get("od_config.photodiode_channel", "2", fallback=None),
    type=click.STRING,
    show_default=True,
    help="specify the angle(s) between the IR LED(s) and the PD in channel 2, separated by commas. Don't specify if channel is empty.",
)
@click.option("--fake-data", is_flag=True, help="produce fake data (for testing)")
@click.option("--snapshot", is_flag=True, help="take one reading and exit")
def click_od_reading(
    od_angle_channel1: pt.PdAngleOrREF, od_angle_channel2: pt.PdAngleOrREF, fake_data: bool, snapshot: bool
) -> None:
    """
    Start the optical density reading job
    """

    if snapshot:
        od = start_od_reading(
            od_angle_channel1,
            od_angle_channel2,
            fake_data=fake_data or whoami.is_testing_env(),
            interval=None,
        )
        od.logger.debug(od.record_from_adc())
        # end early
        return
    else:
        od = start_od_reading(
            od_angle_channel1,
            od_angle_channel2,
            fake_data=fake_data or whoami.is_testing_env(),
        )
        od.block_until_disconnected()

This will overwrite the usual pio run od_reading with this new code. Does that make sense?


There’s another solution that would involve creating new “calibration devices”, one per PD. So, instead of od as the device, it’s od_pd1 and od_pd2. Then you can have again a single active calibration per device. This is a pretty good solution, too. It would require more custom calibration code though.

Hi Cameron,

Thanks so much for getting back on me so quickly and with a coded up solution!

In case helpful to others: I needed to add in *args, **kwargs as parameters to the run function:

class MultiplePDCalibration(CalibrationProtocol):
   target_device = "od"
   protocol_name = "single_vial_multiple_pd"

   def run(self, *args, **kwargs) -> structs.ODCalibration:
       return run_od_calibration()

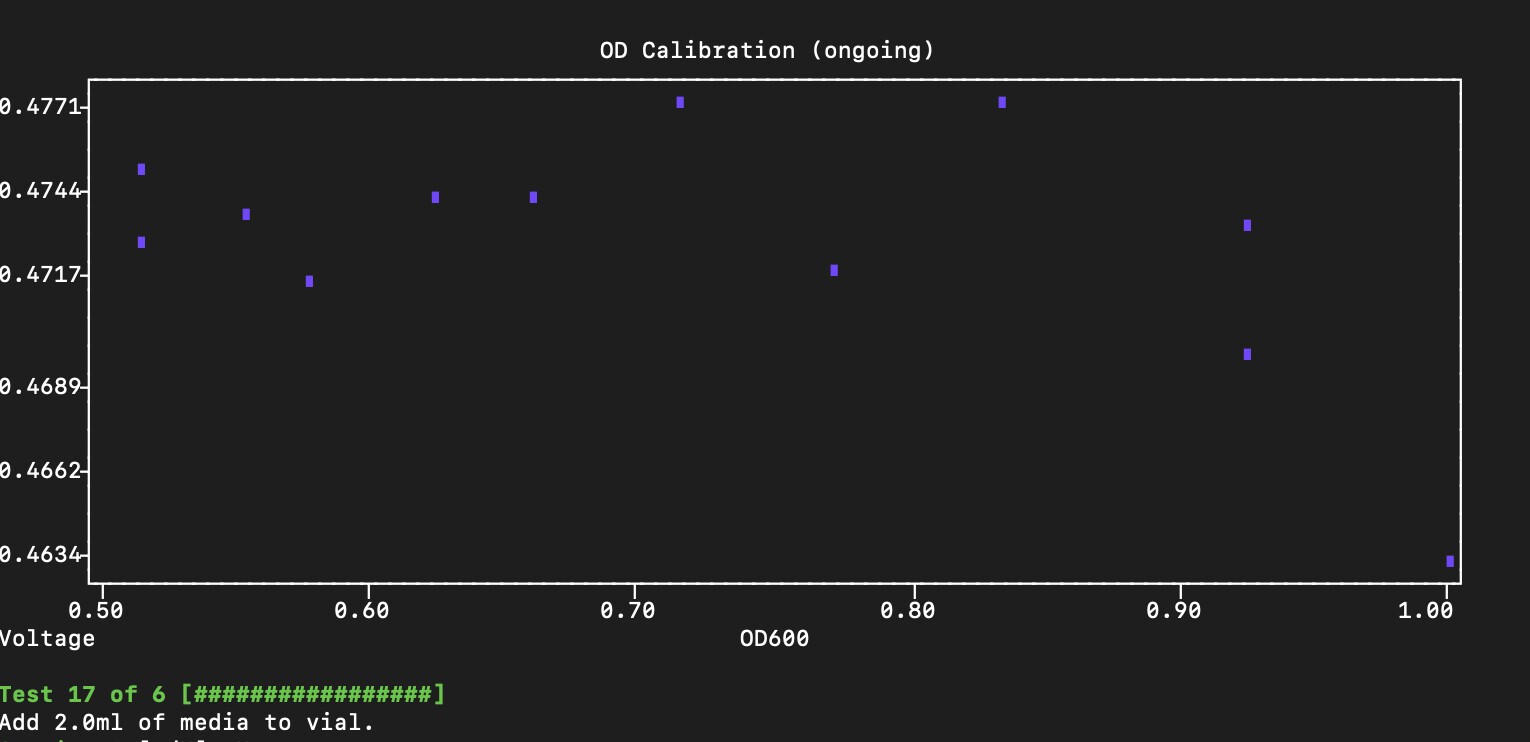

I tried the calibration without anything in the file just to see if I could get the software bit working. I had some difficulty with the calibration running more tests than expected (“Test 17 of 6”) - in the end I just exited the calibration and copied across some old calibration files so I could test the next bit. I’ll try again in the morning with some actual culture! And check that loop in the code if I still have problems.

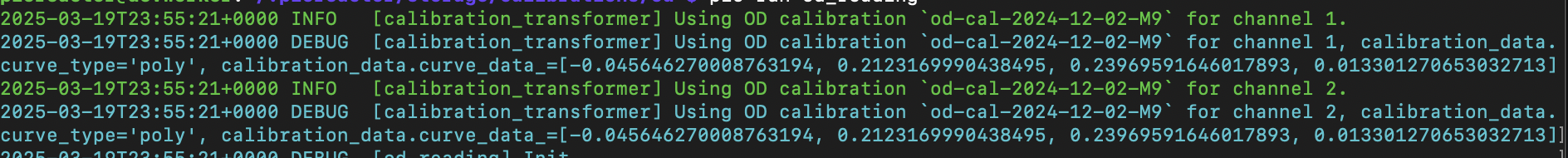

Success!

Really appreciate your help, thank you :slight_smile:

Ack, we’ve been fighting this bug for a while, and can’t seem to pin it down. LMK what parameters you are using in your set up (min OD, max OD, volume, etc), and maybe we can help.

Hi Cameron,

I don’t remember the parameters I’m afraid but I was doing a dummy run of the script rather than actually performing a calibration with a culture so my minimum_od was never reached (and I imagine just got stuck in the while loop?). All worked as intended when we ran the calibration with an actual culture and as instructed.

On another note, we found it very helpful to be able to run the calibrations from a file. I think this functionality was removed in the uphaul to the calibration setup. I’m not sure whether this was intentional or whether you’re incrementally adding functionality. If it wasn’t intentional, would it be possible to add it back in? I’ve created additional protocols for us to be able to do it at the moment (adding a data_file parameter into the run function of the parameters) so not a blocker but mentioning in case it’s helpful to anyone else. I attach the protocols.

Many thanks!

od_calibration_using_standards_from_file.py (11.5 KB)
media_pump_duration_based_from_file.py (13.7 KB)
