Self-test failure (IR -> REF)

Using the Pioreactor
1

Hi,
First, I would like to say that this is a great initiative and I wish you every success in making bioreactors more accessible to scientific community.

I have recently bought two Pioreactors (v1.1) and, after following the instructions, have both successfully assembled and connected to Wi-Fi. I tried to run a self-test after that and ran into a problem with the apparent absence of a linear response between the IR LED and the photodiode in Channel 2 (90°). Both pioreactors appear to have the same problem. Would you have any suggestions/recommendations?

Event log

timestamp_localtime experiment pioreactor_unit timestamp message source level task
2024-06-08 18:24:11 Demo experiment pio1 2024-06-08T17:24:11.082246Z Starting self-test. Running 10 tests. app INFO self_test
2024-06-08 18:24:11 Demo experiment pio1 2024-06-08T17:24:11.097642Z test_pioreactor_HAT_present: :white_check_mark: app DEBUG self_test
2024-06-08 18:24:11 Demo experiment pio1 2024-06-08T17:24:11.168879Z test_detect_heating_pcb: :white_check_mark: app DEBUG self_test
2024-06-08 18:24:11 Demo experiment pio1 2024-06-08T17:24:11.203648Z Using ADC class Pico_ADC. app DEBUG adc_reader
2024-06-08 18:24:11 Demo experiment pio1 2024-06-08T17:24:11.209276Z ADC ready to read from PD channels 1, 2, with gain 1. app DEBUG adc_reader
2024-06-08 18:24:11 Demo experiment pio1 2024-06-08T17:24:11.688698Z Varying heating. app DEBUG self_test
2024-06-08 18:24:24 Demo experiment pio1 2024-06-08T17:24:24.848576Z AC hz estimate: 50.0 app DEBUG adc_reader
2024-06-08 18:24:26 Demo experiment pio1 2024-06-08T17:24:26.769977Z Correlation between temp sensor and heating: 0.97 app DEBUG self_test
2024-06-08 18:24:32 Demo experiment pio1 2024-06-08T17:24:32.784771Z test_positive_correlation_between_temperature_and_heating: :white_check_mark: app DEBUG self_test
2024-06-08 18:24:32 Demo experiment pio1 2024-06-08T17:24:32.790786Z test_aux_power_is_not_too_high: :white_check_mark: app DEBUG self_test
2024-06-08 18:24:59 Demo experiment pio1 2024-06-08T17:24:59.059281Z Corr(A, 1) = 1.0 app DEBUG self_test
2024-06-08 18:24:59 Demo experiment pio1 2024-06-08T17:24:59.062708Z [(32, 0.09645419933229045), (35, 0.09863152973425277), (53, 0.11572266720108727), (44, 0.10694855621697068), (38, 0.1010654856629908), (47, 0.10974609466771185), (50, 0.11248344743076988), (41, 0.10372681994955281), (56, 0.11741680768698169), (59, 0.11951920442257775), (62, 0.12179782007547761), (65, 0.12407002190842785)] app DEBUG self_test
2024-06-08 18:24:59 Demo experiment pio1 2024-06-08T17:24:59.065207Z Corr(A, 2) = 0.19 app DEBUG self_test
2024-06-08 18:24:59 Demo experiment pio1 2024-06-08T17:24:59.067873Z [(32, 0.06084120269870052), (35, 0.060787022342132215), (53, 0.06085038936309487), (44, 0.060832446706653866), (38, 0.06082527310980005), (47, 0.06080620350511639), (50, 0.060868109958803464), (41, 0.06086673978829251), (56, 0.060865090831338724), (59, 0.06088069658611994), (62, 0.06082999921213661), (65, 0.060801631753397346)] app DEBUG self_test
2024-06-08 18:25:02 Demo experiment pio1 2024-06-08T17:25:02.137026Z Correlations between LEDs and PD:
{(‘A’, ‘1’): 1.0, (‘A’, ‘2’): 0.19}		 app DEBUG self_test
2024-06-08 18:25:02 Demo experiment pio1 2024-06-08T17:25:02.155889Z missing A ⇝ 2
Traceback (most recent call last):
File /usr/local/lib/python3.11/dist-packages/pioreactor/actions/self_test.py, line 441, in _run
test(client, logger, unit, testing_experiment)
File /usr/local/lib/python3.11/dist-packages/pioreactor/actions/self_test.py, line 232, in test_all_positive_correlations_between_pds_and_leds
assert results[(ir_led_channel, ir_pd_channel)] > 0.90, fmissing {ir_led_channel} ⇝ {ir_pd_channel}
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
AssertionError: missing A ⇝ 2		 app DEBUG self_test
2024-06-08 18:25:02 Demo experiment pio1 2024-06-08T17:25:02.161603Z test all positive correlations between pds and leds: missing A ⇝ 2 app WARNING self_test
2024-06-08 18:25:02 Demo experiment pio1 2024-06-08T17:25:02.164187Z test_all_positive_correlations_between_pds_and_leds: :x: app DEBUG self_test
2024-06-08 18:25:02 Demo experiment pio1 2024-06-08T17:25:02.170905Z Using ADC class Pico_ADC. app DEBUG adc_reader
2024-06-08 18:25:02 Demo experiment pio1 2024-06-08T17:25:02.175669Z ADC ready to read from PD channels 1, 2, with gain 1. app DEBUG adc_reader
2024-06-08 18:25:03 Demo experiment pio1 2024-06-08T17:25:03.172224Z AC hz estimate: 50.0 app DEBUG adc_reader
2024-06-08 18:25:03 Demo experiment pio1 2024-06-08T17:25:03.177750Z test_ambient_light_interference: :white_check_mark: app DEBUG self_test
2024-06-08 18:25:03 Demo experiment pio1 2024-06-08T17:25:03.184253Z Using ADC class Pico_ADC. app DEBUG adc_reader
2024-06-08 18:25:03 Demo experiment pio1 2024-06-08T17:25:03.187774Z ADC ready to read from PD channels 1, with gain 1. app DEBUG adc_reader
2024-06-08 18:25:04 Demo experiment pio1 2024-06-08T17:25:04.091515Z AC hz estimate: 50.0 app DEBUG adc_reader
2024-06-08 18:25:04 Demo experiment pio1 2024-06-08T17:25:04.095890Z ADC offsets: {‘1’: 1191.189088519811}, and in voltage: {‘1’: 0.05999578742544835} app DEBUG adc_reader
2024-06-08 18:25:09 Demo experiment pio1 2024-06-08T17:25:09.603175Z test_REF_is_lower_than_0_dot_256_volts: :white_check_mark: app DEBUG self_test
2024-06-08 18:25:10 Demo experiment pio1 2024-06-08T17:25:10.204880Z Not using any IR LED reference. app DEBUG ir_led_ref
2024-06-08 18:25:10 Demo experiment pio1 2024-06-08T17:25:10.219931Z Not using any calibration. app DEBUG calibration_transformer
2024-06-08 18:25:10 Demo experiment pio1 2024-06-08T17:25:10.525052Z Using ADC class Pico_ADC. app DEBUG adc_reader
2024-06-08 18:25:10 Demo experiment pio1 2024-06-08T17:25:10.529743Z ADC ready to read from PD channels 1, 2, with gain 1. app DEBUG adc_reader
2024-06-08 18:25:11 Demo experiment pio1 2024-06-08T17:25:11.571679Z AC hz estimate: 50.0 app DEBUG adc_reader
2024-06-08 18:25:12 Demo experiment pio1 2024-06-08T17:25:12.478187Z ADC offsets: {‘1’: 1189.9392335983885, ‘2’: 1205.9044983204165}, and in voltage: {‘1’: 0.05993283685706168, ‘2’: 0.060736948175478846} app DEBUG adc_reader
2024-06-08 18:26:20 Demo experiment pio1 2024-06-08T17:26:20.928878Z test_REF_is_in_correct_position: :white_check_mark: app DEBUG self_test
2024-06-08 18:26:20 Demo experiment pio1 2024-06-08T17:26:20.932573Z Not using any IR LED reference. app DEBUG ir_led_ref
2024-06-08 18:26:20 Demo experiment pio1 2024-06-08T17:26:20.935085Z Not using any calibration. app DEBUG calibration_transformer
2024-06-08 18:26:21 Demo experiment pio1 2024-06-08T17:26:21.340671Z Using ADC class Pico_ADC. app DEBUG adc_reader
2024-06-08 18:26:21 Demo experiment pio1 2024-06-08T17:26:21.344716Z ADC ready to read from PD channels 2, with gain 1. app DEBUG adc_reader
2024-06-08 18:26:22 Demo experiment pio1 2024-06-08T17:26:22.383604Z AC hz estimate: 50.0 app DEBUG adc_reader
2024-06-08 18:26:23 Demo experiment pio1 2024-06-08T17:26:23.288232Z ADC offsets: {‘2’: 1207.17262311265}, and in voltage: {‘2’: 0.060800818929666434} app DEBUG adc_reader
2024-06-08 18:26:38 Demo experiment pio1 2024-06-08T17:26:38.106872Z test_PD_is_near_0_volts_for_blank: :white_check_mark: app DEBUG self_test
2024-06-08 18:27:09 Demo experiment pio1 2024-06-08T17:27:09.600147Z Correlation between stirring RPM and duty cycle: 0.99 app DEBUG self_test
2024-06-08 18:27:09 Demo experiment pio1 2024-06-08T17:27:09.603090Z dcs=[36.0, 34.5, 33.0, 31.5, 30.0, 28.5, 27.0, 25.5], measured_rpms=[1037.196297310795, 1000.2475422143299, 999.9792711779794, 891.189376940555, 811.8439227102607, 738.0839619589477, 674.8476718497708, 606.1162458993286] app DEBUG self_test
2024-06-08 18:27:12 Demo experiment pio1 2024-06-08T17:27:12.730862Z test_positive_correlation_between_rpm_and_stirring: :white_check_mark: app DEBUG self_test
2024-06-08 18:27:12 Demo experiment pio1 2024-06-08T17:27:12.734923Z 1 failed test :x: app INFO self_test

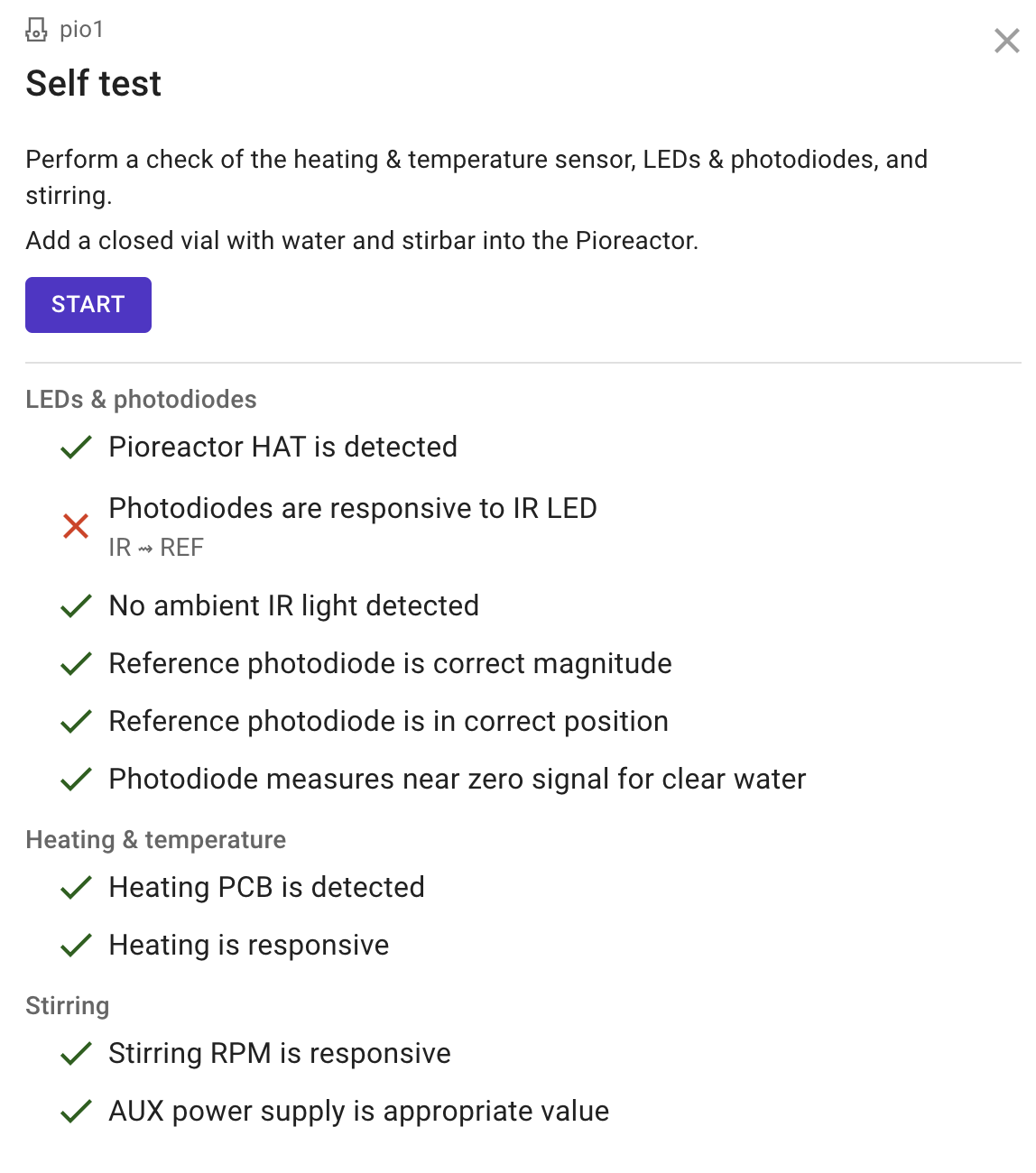

image1148×1300 86.7 KB

2

Hi @TimSkvortsov, thanks for the kind words!

This has been reported by some other users, and we are working on making this test more robust. Try the following:

  1. Add a slight volume of culture, or milk, or tea, or anything that is turbid (cloudy) to your vial. The goal is to add a little more light scatter to the culture.
  2. Try the self-test again (if other tests fail now, that’s okay and can be ignored)
3

Hi @CamDavidsonPilon, thanks for your suggestion, it fixed the problem with photodiodes.

I have another problem with one of the bioreactors now unfortunately – the magnetic stirrer seems to stop randomly during the self-test.
